Double screw powder packaging machine
automatic powder filling machine
powder weighing and filling machine
rice powder weighing and filling machine
Double screw powder packaging machine
automatic powder filling machine
powder weighing and filling machine
rice powder weighing and filling machine

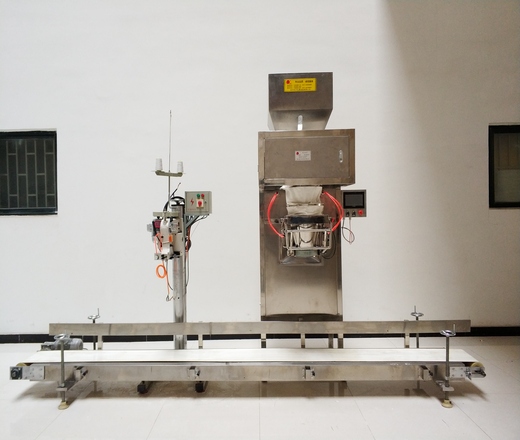

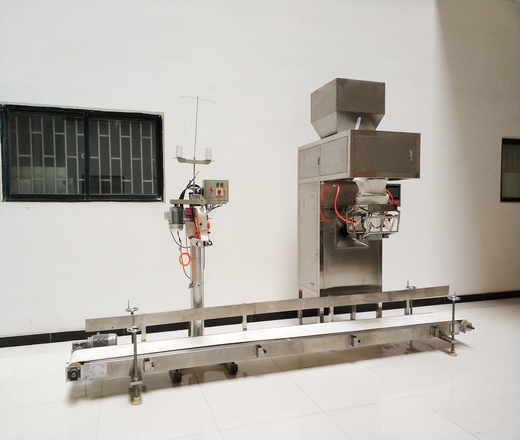

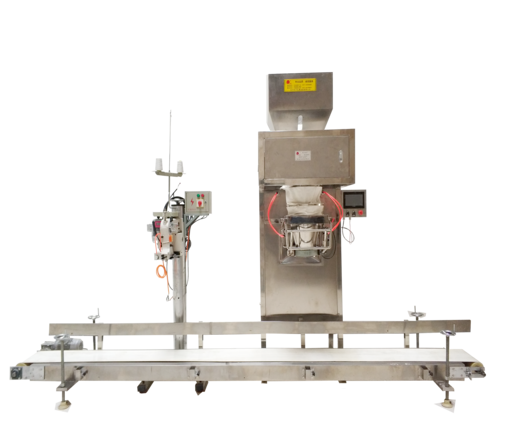

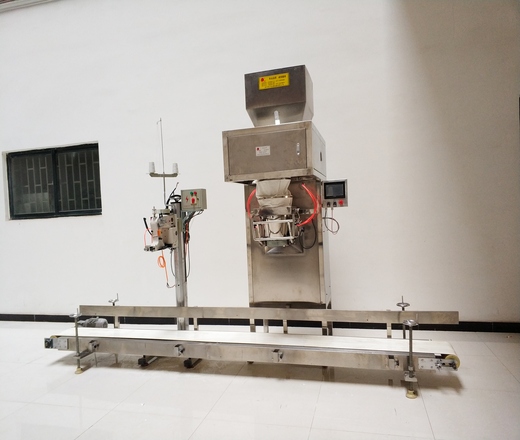

KY-C25 AutomaticPre made bag powder packaging machine

introduction
KY-C25/50 computerized quantitative packaging machine is mainly composed of host, conveyor belt, sewing machine, computer controller and so on. The main machine adopts barrelless metering and frequency conversion control for three-speed feed. The measuring accuracy is accurate; the equipment is easy to clean; there is no blockage.
Send email
Chat now
features
parameter
deatails
application&packing sample
1. Material: stainless steel

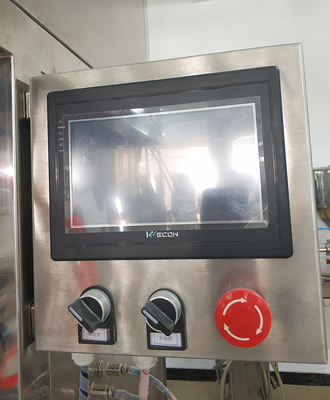

2. Control instruments.
3. The main machine adopts fast and slow frequency converters to control screw rotation and feeding.
4. There are automatic storage functions for shift production, daily production, and cumulative production information.

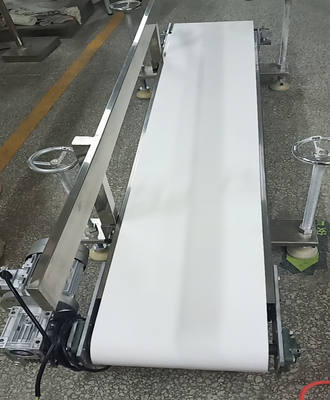

Conveyor length: 3m
Conveying speed: 5-20m/min
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags/min
Power supply: AC380V
Work rate: 0.37kw
Sealing machine model: KY-F600
Stitch width: 6.5-11mm (adjustable)
Power source: 220v 50hz
Power: 400W
Operating time: 8000 hours/year
Ambient temperature~10-40℃
The electronic control system shall meet the requirements of the above-mentioned equipment operating in interlock.
Gas source: the purchaser is responsible for the gas source
Exhaust pressure 0.6-0.8Mpa
Power 2.0KW
Packaging machine use process: manual assistance in bag loading, automatic weighing, bag clamping, filling, and automatic sealing or sewing by conveying through the conveyor belt
parameter
Model KY-C25/C50
Weighing capacity 3~6 bags/min
Weighing range 10-50kg/bag
Weighing error ±0.3%
Control method control instrument
Power supply AC380V 50Hz Three-phase
Host power 3.5kw
Gas supply oil-free, dust-free instrument gas
Pressure 0.6---0.8MPa
Air consumption 0.4Nm3/min
Dimensions(L*W*H) 1040*1200*2550mm

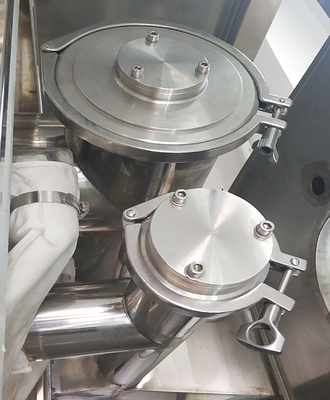

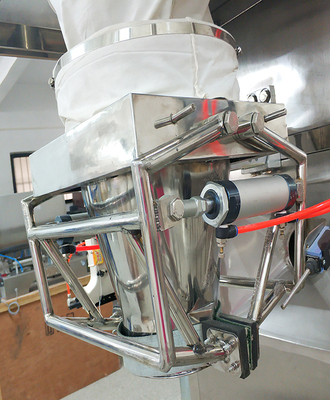

deatails
Related products
Zhengzhou Huayu Kaiyu packaging equipment

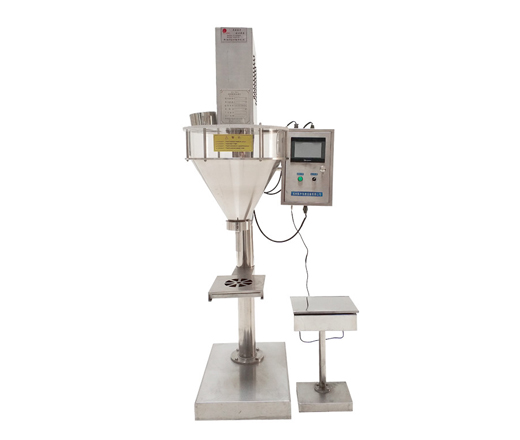

powder filling machine
powder filling machine
Suitable for the packaging of powder materials, such as:fertilizer, additives, flour, milk powder, coffee powder, and so on.
View packaging collection

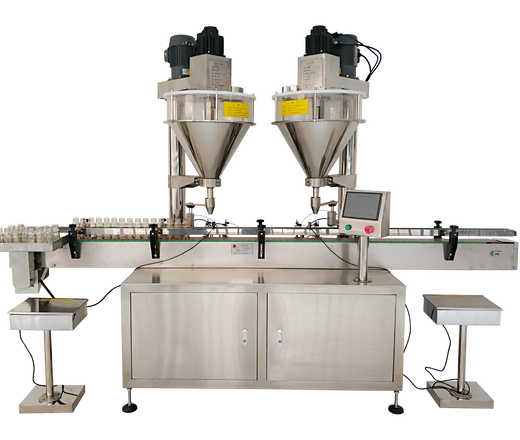

KY-F01AS Double-head powder packaging machine
KY-F01AS Double-head powder packaging machine
It is suitable for canned milk powder, protein powder, chicken powder, glucose/rice /noodles powder, cocoa powder, solid beverages, etc.
View packaging collection
starch powder packing machine

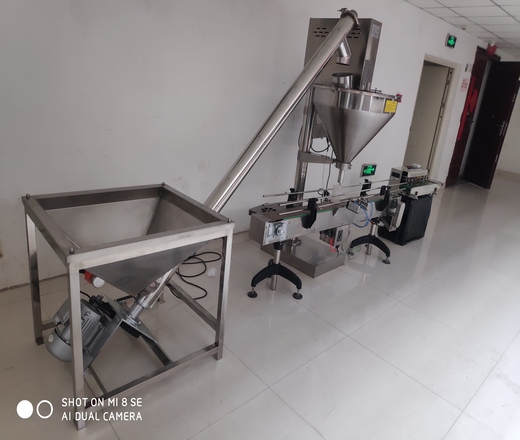

KY-F01SD Large silo powder packaging machine
It is a new type of packaging machine developed by our company on the basis of KY-F01S.
View packaging collection

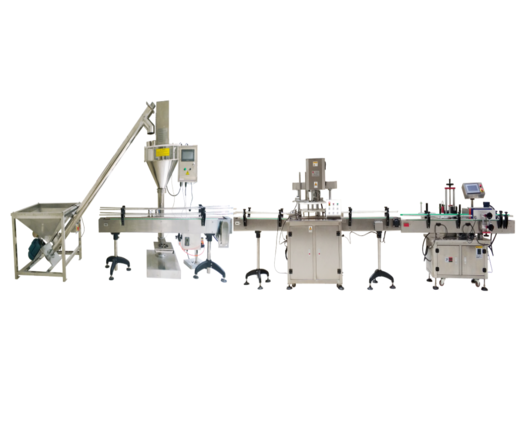

10g-1000g Automatic Powder filling line
