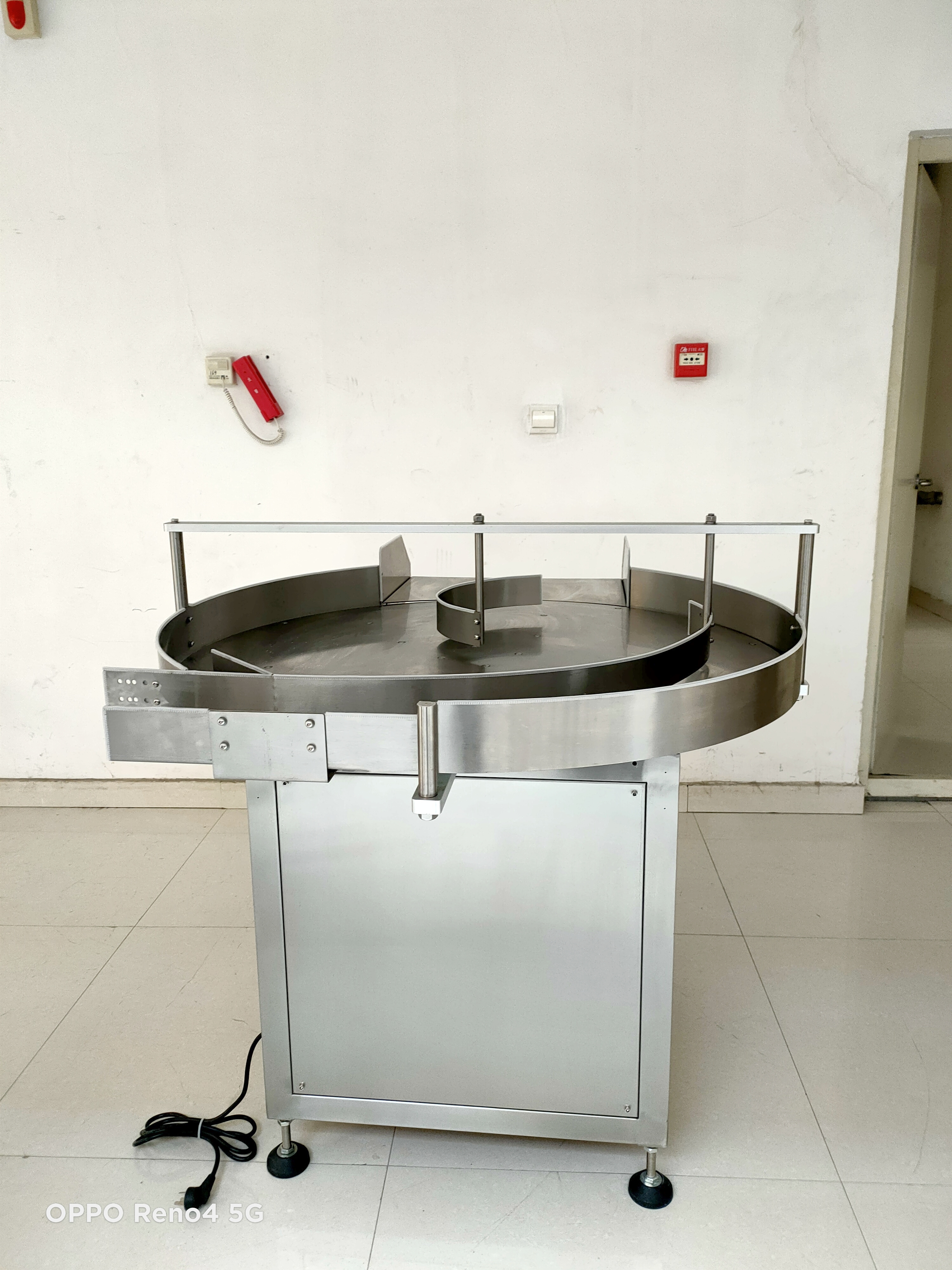

| model | KY-LP01 Bottle unscrambler |
| voltage | 220V/50Hz |
| power | 0.12KW |
| Turntable diameter | 800mm |
| Unscramble bottle speed | According to bottle volume |
| Adapt to bottle type | Round glass bottle |
| height | Max850mm |
| Dimension | 1100*1100*1070mm |

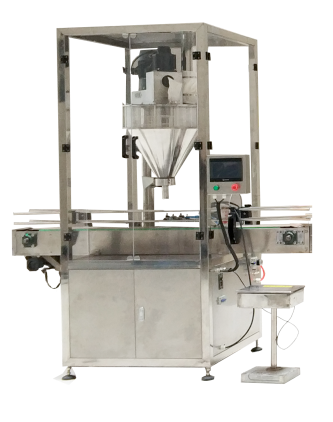

| Model | KY-F01AS |
| Measurement method | Screw filling measurement |
| Canned weight | 100 - 1000g |
| Container size | Φ60-135mm; H 60-260mm |
| Canning accuracy | ±1g |
| Canning speed | 20-35 cans/min |
| power supply | 3P AC208-415V 50/60Hz |
| Total power | 3.5 kw |
| Total Weight | 450kg |
| Compressed air | 6kg/cm 0.3cbm/min |
| Whole machine volume | 950×850×2100mm(Box body part) Conveyor belt length 3m |

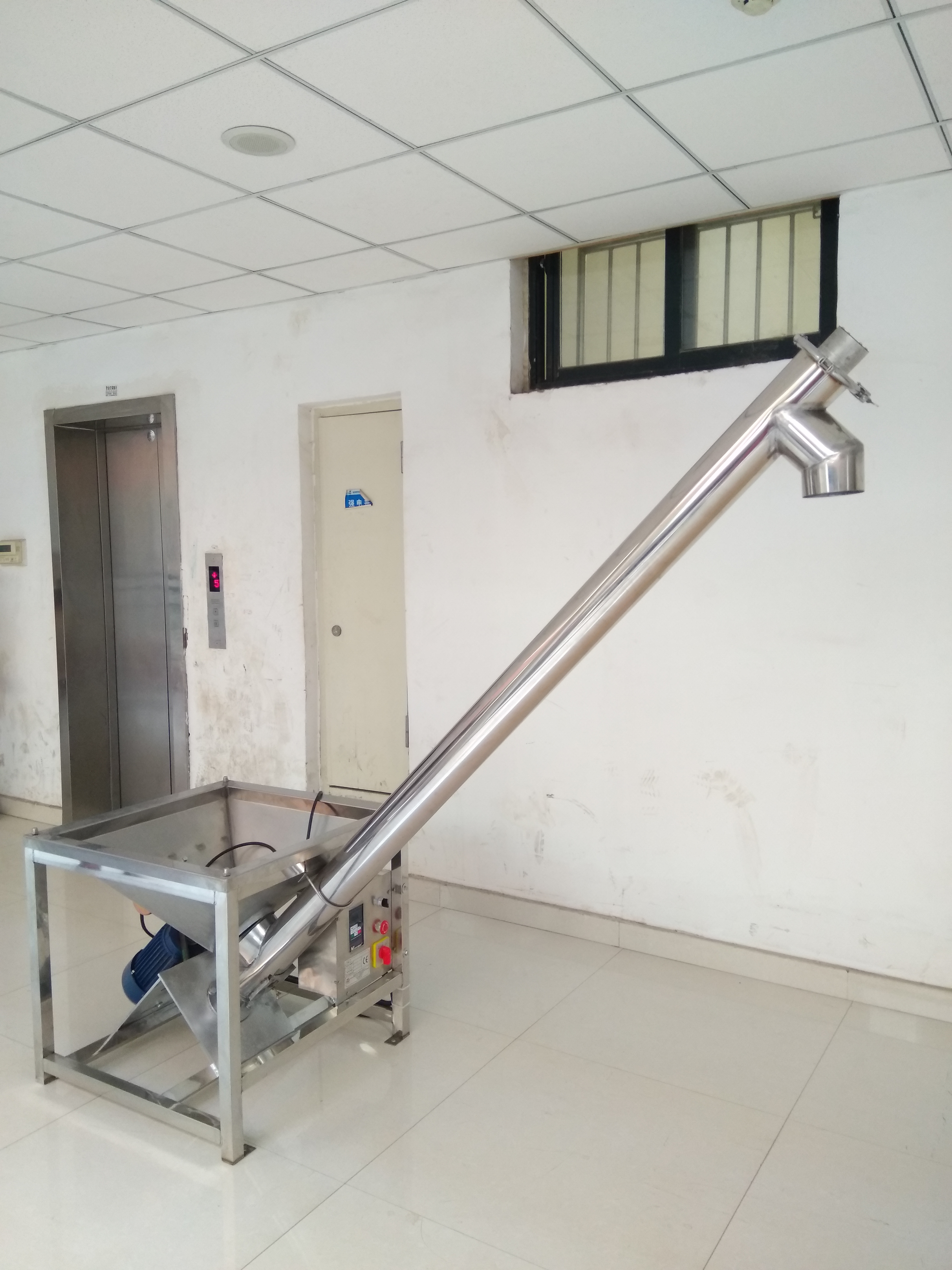

| Tank volume | 40L |
| Lifting height | 1650mm(customized) |
| Power | 1.5Kw |
| Weight | 80kg |
| Silo capacity | 118L |
| Conveying capacity | 3m³/hour |
| Dimensions | 880×850×810mm |
| Optional | Dust cover, 304/201 stainless steel |

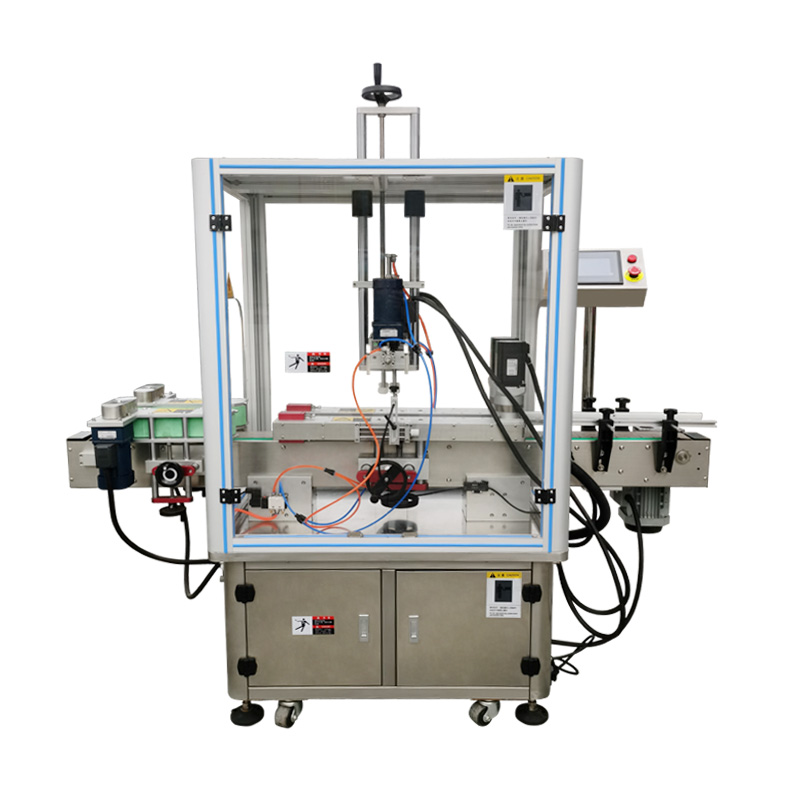

| Model | KY-FG100E automatic can sealing machine |
| Appearance material | 304 stainless steel |
| Number of cans | 1 |
| Sealing speed | 30～35 cans/min |
| Sealing height | 50-200mm adjustable |
| Applicable bottle diameter | 35-100mm (only one caliber) |
| Voltage | 220V/380V 50/60Hz |
| power | 1.1KW |
| weight | 500KG |
| size | 1800(L)*950(W)*1300(H)mm |
| Model | KY-TB05 Round bottle sticker labeling machine |
| Production capacity | 0-50 bottles/min |
| Applicable specifications | Ф20-ф100mm |
| Labeling accuracy | ≤±1mm |
| Label length | 20-200mm |
| Label width | 10-100mm |
| power | 1.5kw |
| power supply | 220V/50Hz |
| Machine weight | 250kg |
| Dimensions | 1800*950*1300mm |
| Model | KY-PM01 automatic Inkjet printer |
| Printing ink | Available in black, blue, red, yellow and other colors |
| Ink consumption | Can print 70 million characters/liter (5×7) |
| temperature range | 5-45℃ |
| Humidity range | Less than 90% |
| Gross weight | 30KG |
| Dimensions | 246×338×550mm |
| power supply | AC220V 50HZ 100VA |
| Number of printing lines | 1~3 rows |
| Printing dot matrix | 6, 8.10, 12, 16, 24 dot matrix font, any dot matrix within 24×24 |
| Chinese font | 16×16 Jian Song, Traditional Song, Jian Hei, Jian Kai, 24×24 Jian Song and 32 dot matrix customization |
| Store information | 1000 pieces of printing information can be stored |
| Printing speed | 900 characters/sec (5×7) |
| High printing | Adjustable from 1.5mm to 20mm, the maximum width can be 9 times |
| Operation interface | Chinese menu display, with own graphic editing function |
| Chinese support | Built-in international first and second level Chinese character library |
| Chinese input | Pinyin input method, location input method, code input method |
| Printing content | Automatically print date, time, batch number, serial number, etc. |
| Printing materials | Can print metal, plastic, glass, wood, pipeline and building materials surface, etc. |
