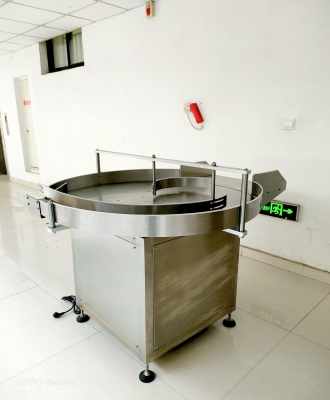

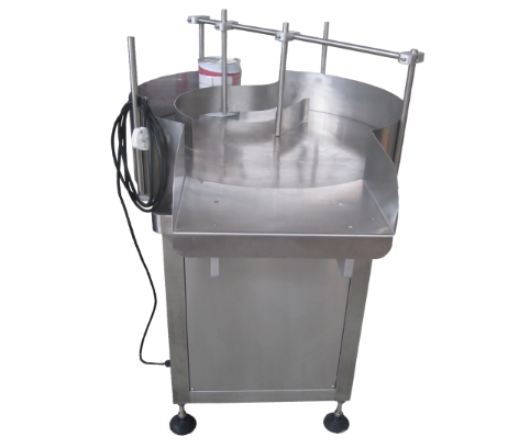

| Model | KY-LP01 Bottle unscrambler |
| Voltage | 220V/50Hz |
| Power | 0.12KW |
| Turntable diameter | 800mm |
| Unscramble bottle speed | According to bottle volume |
| Adapt to bottle type | Round glass bottle |
| Height | Max850mm |
| Dimension | 1100*1100*1070mm |

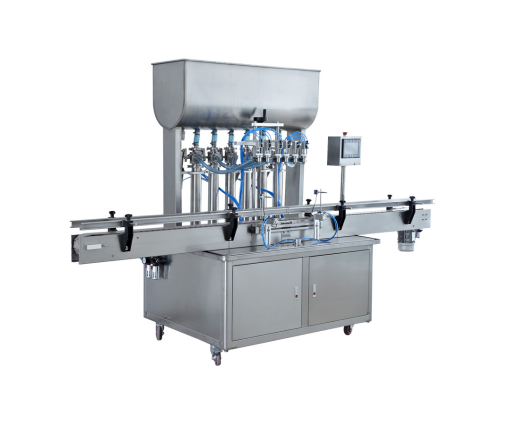

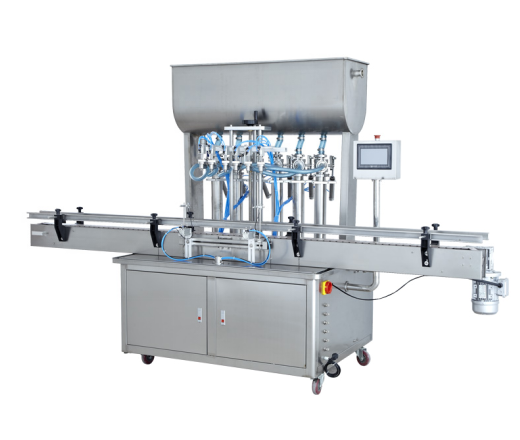

| Model | KY-G2T | KY-G4T | KY-G6T | KY-G8T | |||

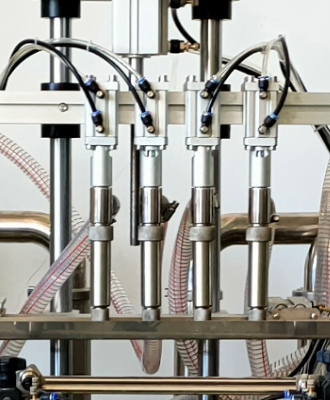

| Filling heads | Double heads | Four heads | Six heads | Eight heads | |||
| Voltage | 220/110V 50/60Hz | ||||||
| Powder | 500W | 800W | 1000W | 1500W | |||
| Rated air pressure | 0.4-0.6MPa (The machine is equipped with a gas tank) | ||||||
| Work efficiency | ≈4-16 bottles/min | ≈8-32 bottles/min | ≈12-48 bottles/min |
≈16-64 bottles/min |
|||
| Filling accuracy | ≤±1% | ||||||
| Filling range | 20-100ml 30-300ml 50-500ml 100-1000ml 500-2000ml 700-3000ml 1000-5000ml |
||||||
| conveyor | 2M | 2M | 3M | 4M | |||

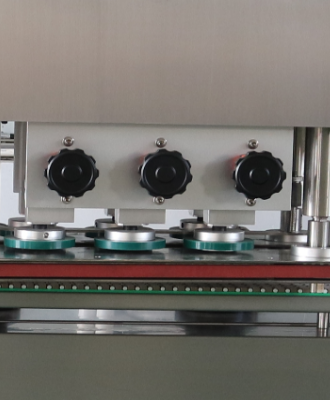

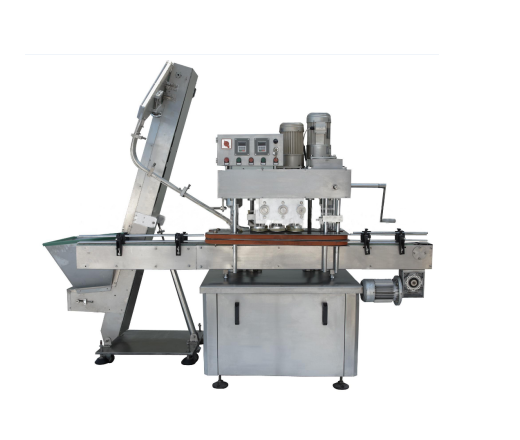

| Model | KY-SG01 automatic capping machine |
| Speed | 10-60 bottles/min |
| Power | 550w |
| Weight | 450kg |
| Dimension | 2000*800*1600mm |
| Model | KY-PM01 automatic Inkjet printer |
| Printing ink | Available in black, blue, red, yellow and other colors |
| Ink consumption | Can print 70 million characters/liter (5×7) |
| temperature range | 5-45℃ |
| Humidity range | Less than 90% |
| Gross weight | 30KG |
| Dimensions | 246×338×550mm |
| power supply | AC220V 50HZ 100VA |
| Number of printing lines | 1~3 rows |
| Printing dot matrix | 6, 8.10, 12, 16, 24 dot matrix font, any dot matrix within 24×24 |
| Chinese font | 16×16 Jian Song, Traditional Song, Jian Hei, Jian Kai, 24×24 Jian Song and 32 dot matrix customization |
| Store information | 1000 pieces of printing information can be stored |
| Printing speed | 900 characters/sec (5×7) |
| High printing | Adjustable from 1.5mm to 20mm, the maximum width can be 9 times |
| Operation interface | Chinese menu display, with own graphic editing function |
| Chinese support | Built-in international first and second level Chinese character library |
| Chinese input | Pinyin input method, location input method, code input method |
| Printing content | Automatically print date, time, batch number, serial number, etc. |
| Printing materials | Can print metal, plastic, glass, wood, pipeline and building materials surface, etc. |
