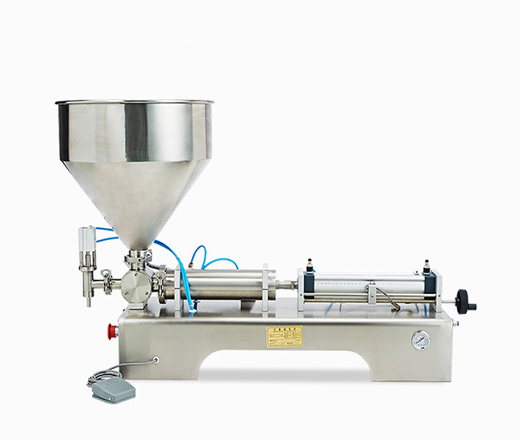

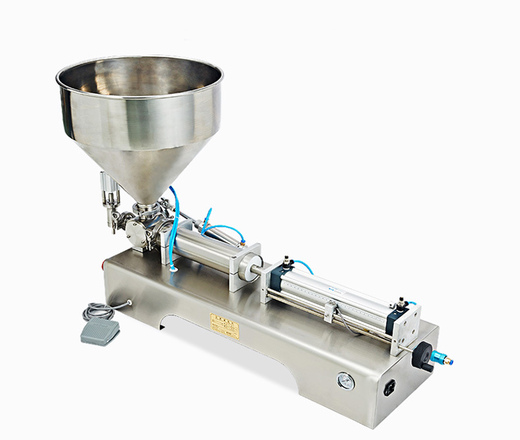

KY-G05 automatic liquid paste sauce filling machine

introduction

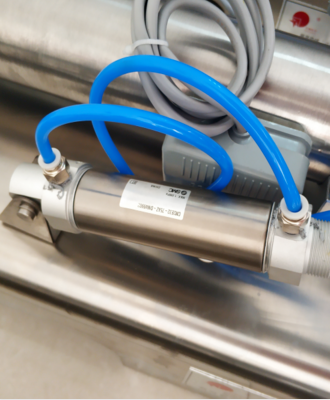

KY-G05 Paste/sauce filling machine is a semi-automatic piston liquid filling machine. The material contact parts are made of all stainless steel, and the pneumatic parts are all pneumatic components from Germany FESTO and Taiwan AirTac.
Send email
Chat now
features
parameter
deatails
application&packing sample
The filling machine is developed and developed for the filling needs of medium to high viscosity products

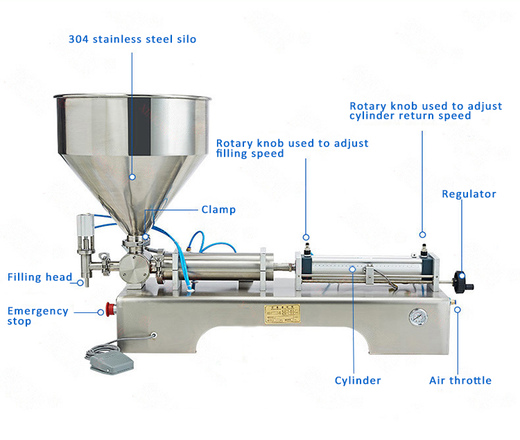

The whole machine has a storage hopper and two parts of electric control, with simple structure and convenient operation
The piston and cylinder body of the cylinder are made of PTFE and stainless steel, which meets the requirements of GMP

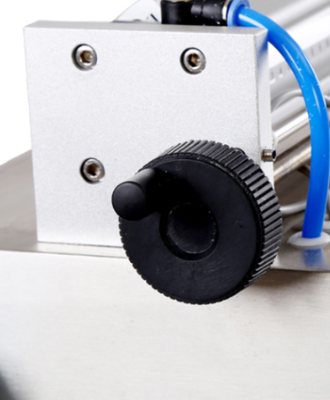

The filling volume and filling speed can be adjusted arbitrarily, with high filling accuracy

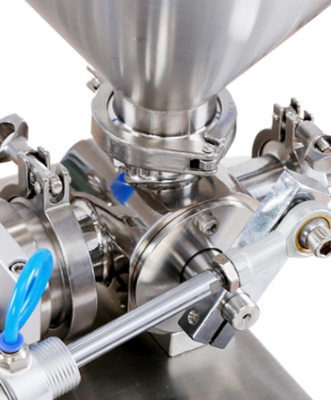

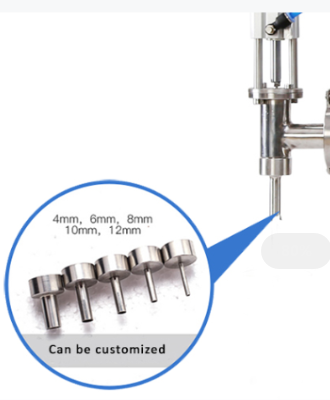

The filling head adopts anti-drip and anti-drawing filling device
This machine can be modified into an explosion-proof filling system according to customer requirements
parameter
Model KY-GZX01/02/04/06 semi automatic paste sauce filling machine
Filling speed 0-25/ 20-60 bottles/hour
Filling accuracy ≤±1%
Power 220/110V 50/60Hz
Air pressure 0.4-0.6MPa
Optional range 5-100ml  10-280ml  20-500ml  100-1000ml  500-2800ml  1000-5000ml
Optional filling head 1/2/4/6 filling head
Dimensions 1100*350*750mm
Optional Heating, stirring, ss304/201,counter
deatails
Related products
Zhengzhou Huayu Kaiyu packaging equipment
sauce packing machine
KY-GZL01-2-4-6 Semi automatic water juice soy sauce vinegar filling machine
KY-G01 is suitable for quantitative filling of liquids with low viscosity and without gas, such as mineral water, fruit juice, pesticides, soy sauce, vinegar, etc.
View packaging collection
semi automatic liquid filling machine

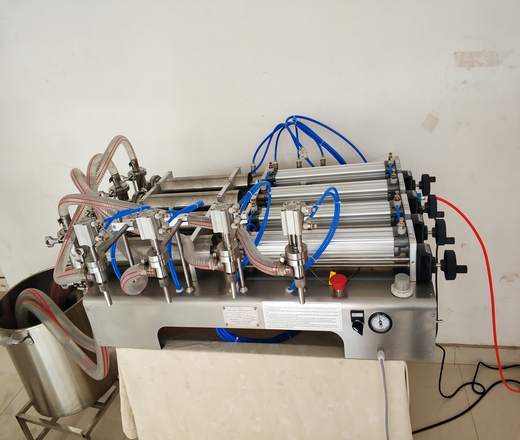

KY-GZX01 semi automatic liquid filling machine
KY-GZX01 liquid filling machine is a semi-automatic piston liquid filling machine.
View packaging collection
automatic liquid detergent soap filling machine

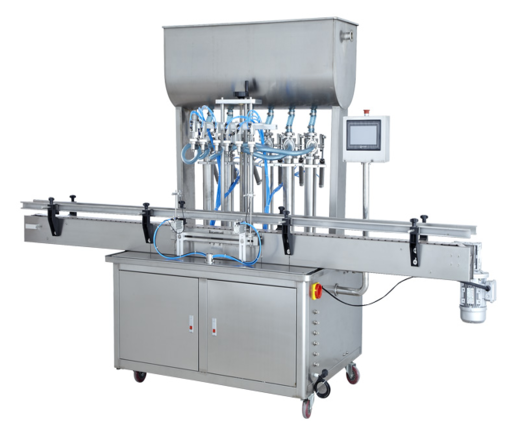

KY-G2-4-6-8T automatic liquid detergent soap filling machine
