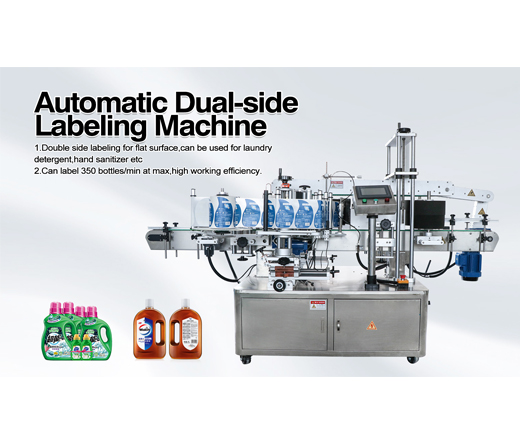

bottle label applicator

introduction

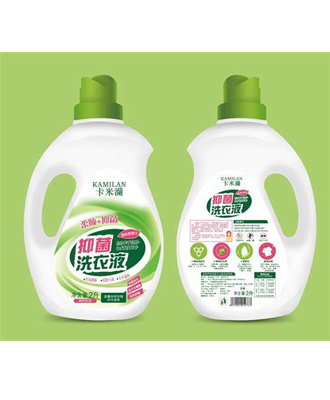

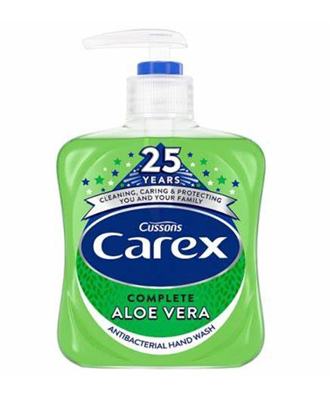

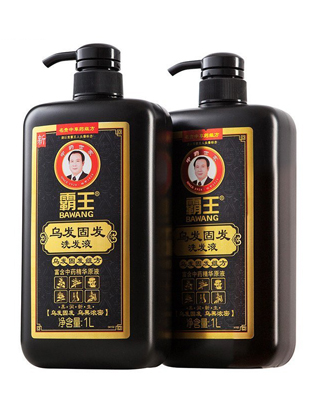

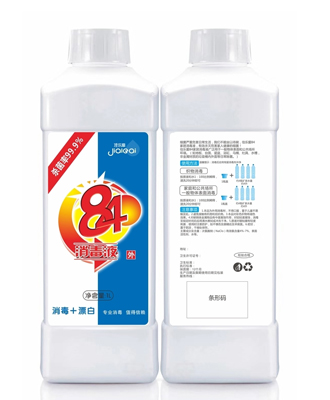

It is applicable to label flat bottles, round bottles and square bottles on one side and double sides, such as shampoo flat bottles, lubricating oil flat bottles,anti-bacterial hand lotion round bottles and so on.

share with:

Scope of application: (1) Applicable labels: sticker, non-drying film, electronic supervision code, bar code, etc. (2) Applicable products: products with labels required to be affixed on the side plane, side large radian surface and circumferential surface. (3)Application industry: widely used in cosmetics, electronics, medicine, hardware, plastic and other industries.

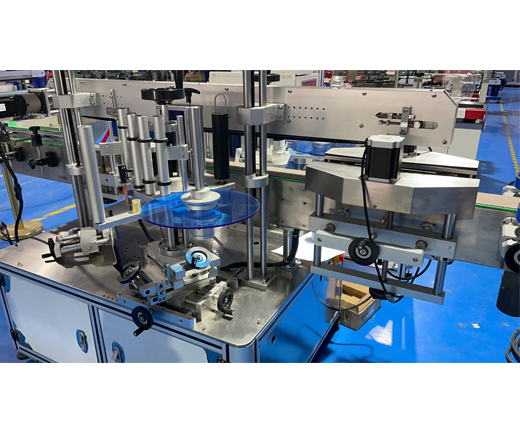

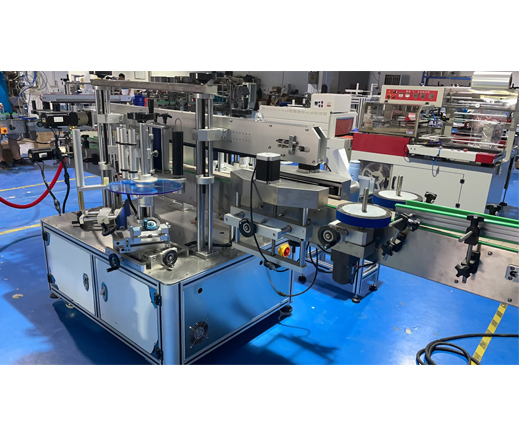

The double-sided rigid plastic synchronous guide chain is used to automatically ensure the neutrality of the bottle, and the requirement for workers to put the bottle and the assembly line to dock the bottle is low, which greatly reduces the difficulty of the worker's work or the assembly line docking. It can be produced on a single machine or connected to an assembly line;

Equipped with elastic pressure topping mechanism to ensure stable product delivery and effectively eliminate the inherent error of bottle height

Equipped with an automatic bottle separation mechanism, the spacing is automatically separated before the bottle is guided to ensure the stability of the subsequent bottle guiding, conveying and labeling;

Equipped with a double labeling mechanism to ensure labeling accuracy for the first time, and the second squeeze labeling can effectively eliminate air bubbles and ensure that the label head and tail are tightly attached;

Intelligent control, automatic photoelectric tracking, with no objects and no labeling, no label automatic correction and automatic label detection functions, to avoid wasting labels and missing labels;

Parameter

Good quality, good after-sale service

Bottle label applicator
Label accuracy	±1mm
Label speed	30～150pcs/minute
Applicable product（length）	(transportation direction）：20mm～250mm
Applicable product（width）	（transportation width direction）：30mm～90mm
Applicable product（height）	60mm～280mm
Applicable label size	L：20mm～200mm
Applicable label size	W（Bottom paper width）：20mm～160mm
label's drum inner radius	Φ76 mm
label's largest outer radius	Φ280 mm
Dimension	3000mm×1450mm×1600mm
Voltage	220V 50HZ
Power	1100W（Traction step）
Power	1600W（Traction servo）
Weight	330Kg

Application
