biscuit packing machine

introduction

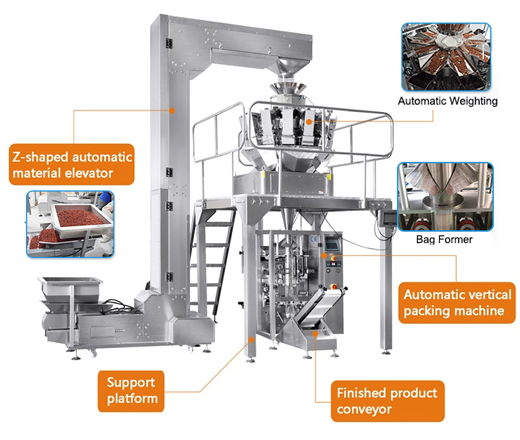

It consist of three parts: Z model elevator, multi head weigher, vertical packing machine, can full automatic Weigh Form Fill Seal.

share with:

Requirement for high precision measurement and fragile packaging bulk goods, such as: puffed food, crispy rice, fruit chips, sweets, pistachio, apple slices, dumpling, chocolate, balloon, rubber, Screw the Nut hardware item, medicines etc.

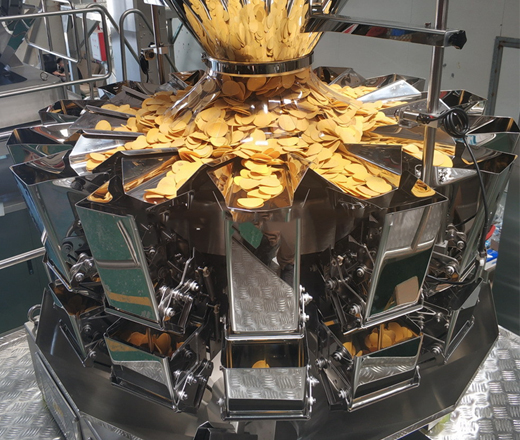

Highly sensitive weighing sensor, with the highest measurement accuracy up to + / - 0.5g.

Automatic bayonet weighing hopper, storage hopper, main vibration and wire vibration without screw fixation.Simple disassembly and convenient cleaning

10 sets of customized storage data, which can store 10 sets of commonly used parameters. When it is necessary to switch parameters, it is convenient and fast to switch with one key

There are 50 kinds of basic parameters of products with different attributes and shapes in the database. Only the same or should be selected when weighing Similar material pictures, and then set the weight to complete the measurement part.Easy to understand.

Anti-acid-base 304 stainless steel plate, meeting the standards of food SC certification and drug GMC.

Parameter

Good quality , good after-sale service

Machine model	KY-320	KY-420	KY-520	KY-620	KY-720	KY-820	KY-1050

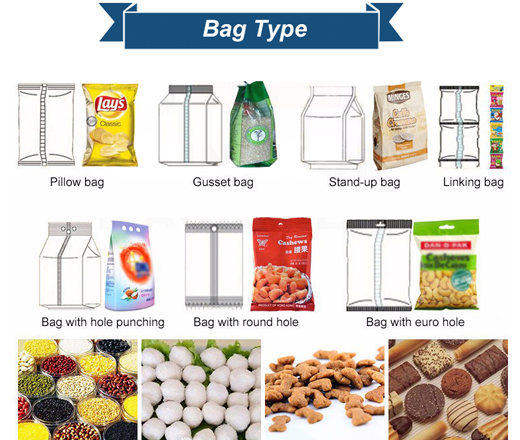

Bag shape	Back sealing pillow bag/4-side sealing bag
Packing speed	25-80bags/min
Roll thickness	0.05-0.15mm
Max roll width	320mm	420mm	520mm	620mm	720mm	820mm	1050mm
Roll diameter	320mm	320mm	320mm	320mm	320mm	320mm	320mm
Bag width	50-150mm	60-200mm	80-250mm	100-300mm	100-350mm	120-400mm	Max:520mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm	100-450mm	120-550mm	Max:750mm
Packing weight	Max:0.5kg	Max:1kg	Max:3kg	Max:4kg	Max:8kg	Max:10kg	Max:15kg
Voltage	220V
Power	2KW	2.2KW	3KW	3.4KW	3.6KW	3.8KW	6KW
Additional configuration	Nitrogen fiiling device Coding printer gas-filled device punch device etc

Application
