semi automatic flat label applicator labeling machine from China Manufacturer

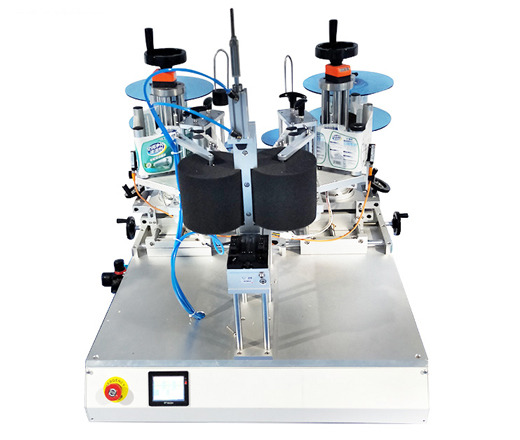

semi automatic flat label applicator labeling machine

introduction

It is applicable to label flat bottles, round bottles and square bottles on one side and double sides, such as shampoo flat bottles, lubricating oil flat bottles,anti-bacterial hand lotion round bottles and so on.

share with:

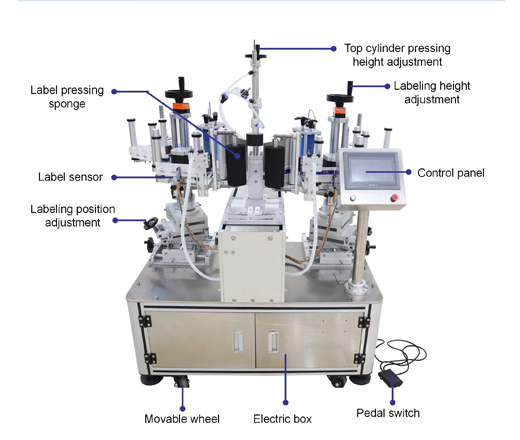

Powerful function, one machine can realize single side of multiple products (flat bottle, square bottle, special-shaped bottle);

Using a double-sided rigid plastic synchronous guide chain, which automatically guarantees the neutrality of the bottle, and has low requirements for the worker to put the bottle and the assembly line to dock the bottle, which greatly reduces the difficulty of the worker's work or the assembly line docking. It can be produced on a single machine or connected to an assembly line;

Equipped with elastic pressure topping mechanism to ensure stable product delivery and effectively eliminate the inherent error of bottle height;

It is equipped with an automatic bottle separation mechanism, and the spacing is automatically separated before the bottle is guided to ensure the stability of the subsequent bottle guiding, conveying and labeling;

It is equipped with a double labeling mechanism to ensure the labeling accuracy for the first time, and the second squeeze labeling can effectively eliminate air bubbles and ensure that the label head and tail are tightly attached;

It has the function of failure shutdown, production counting function, power saving function, production number setting shutdown function, parameter setting protection function, which is convenient for production management;

Parameter

Good Quality , Good after-sale service

KY-S13	Semi automatic flat bottle labeling machine
Applicable product size	length 22～45mm, width 70～100mm, height 110～180mm
Applicable label size	width 20～100mm, length 20～80mm;
Labeling accuracy	±1mm
Labeling speed	20 bottles/min
Voltage	220V ,50Hz, single phase
Dimension	1000×800×1000mm
Gross weight	100kg

Application
