KY-C02 grain packing Machine from China Manufacturer - Kaiyu Packaging Machinery Co., Ltd.

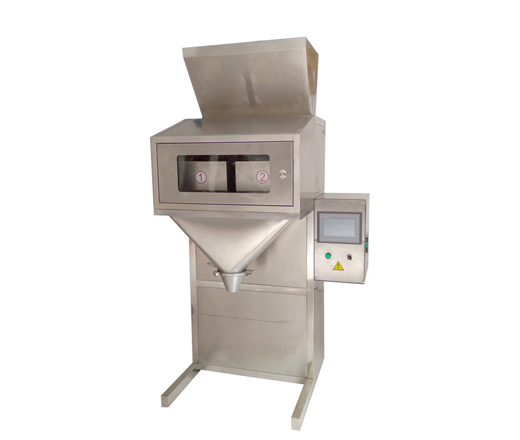

KY-C02 100-2500g grain packing Machine

introduction

Suitable for packaging materials with good fluidity, such as washing powder, dry seasonings, seeds, salt, feed, monosodium glutamate, sugar, etc.

share with:

High precision, high speed, long life, good stability, manual bagging and automatic measurement.

It is not restricted by the packaging container, and is suitable for occasions where material varieties and packaging specifications often change.

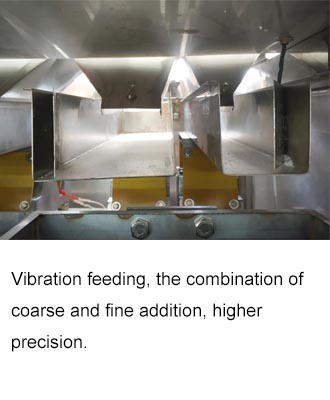

It is designed for vibrating feeding and electronic weighing, which overcomes the shortcomings of measurement errors caused by changes in the proportion of materials.

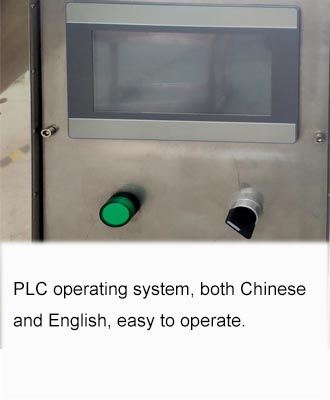

The touch screen display is simple and intuitive, the packaging specifications are continuously adjustable, the working status can be changed at will, and the operation is very simple.

For dusty materials that are easy to generate, the bag opening can be equipped with a dust removal interface or dust suction device independently designed by our company.

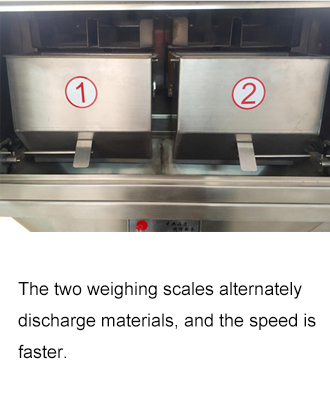

Two scales can also be discharged in parallel.
PLC computer screen controls the cutting, with higher precision and faster speed!

parameter

Our products polish the details carefully

Product number	KY-C02A （Standard machine）	KY-C02AZ （Medium machine）	KY-C02AD （Mainframe）
Measurement method	Weighing type (industrial electronic scale)
Feeding method	Four-vibrator, Three-stage feeding
Weighing range	100-2500g	100-3000g	100-5000g
Total power	2.2kw	0.5kw	3kw
Material quality	Stainless steel
Single bag error	≤±1%
Packaging speed	600-1500bags/hour	500-1200bags/hour	350-1000bags/hour
Total Weight	170kg	200kg	280kg
Whole machine volume	720×720×1900mm	1120×900×2150mm	810×780×2200mm

deatails
